Die Casting Cabinet 640mmX640mm P2.5 LED Screen Module

Product Categories

Shenzhen Xing Guang Cai Technology Co., Limited

Contact Now

Name: Die Casting Cabinet 640mmX640mm P25 LED Screen Module
Brand: XGCLED
Price: 26.78 USD

Brand Name : XGCLED

Model Number : P2.5 LED Indoor display

Place of Origin : Shen Zhen ,China

MOQ : 1 pcs module

Price : USD$26.78/ pcs

Payment Terms : T/T, Western Union, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 square meter per day

Delivery Time : 7-20days

Packaging Details : Cartons , wooden case , fright case

Pixel Pitch : 2.5mm

Module size : 160*160mm

Module resolution : 64*64pixels

LED type : Black color SMD 1515

Cabinet size : 640*640mm

Cabinet material : Die- casting Aluminum

Cabinet resolution : 256*256pixels

cabinet weight : 9kg

Pixel density : 250,000 pixels//㎡

Refresh Frequency : >1920Hz

Waterproof : IP30

Ave/Max power consumption : 200W ㎡~400W/ ㎡

Environmental : Indoor

Contact Now

Die casting aluminum cabinet 640mmX640mm P2.5 LED module Indoor using

Product detais as following :

Module Specifications
1	Pixel Pitch	2.5mm
2	Led Type	SMD2020
3	Module Size	320x160mm
4	Module Resolution	128x64 pixels
5	Driving IC	MBI5124
6	LED lamp	Kinglight
Cabinet Specification
1	Cabinet Size	640x640mm
2	Cabinet Resolution	256x256 pixels
3	Module Qty.	2x4pcs
4	Cabinet Materials	Die-casting aluminum
5	Cabinet Weight	< 10Kg
Screen Parameters

1	Screen Size	Custom size
2	Control PC	Offered by yourself
3	Brightness	1000 cd/m2
4	Scanning Mode	1/32scan
5	Viewing Angle	H:140°;V:140°
6	Viewing Distance	>4m
7	Gray Level	16 Bit
8	Refresh Frequency	480-1920 Hz
9	Power Input	AC 220-240V
10	Power Comsuption	Max: 900W/㎡ Average: 300W/㎡
11	MTBF--hours	>10,000 hours
12	Life--hours	≥100,000 hours
13	IP Grade	IP40
14	Operating Temperature	-30℃~ 60℃
15	Storage Humidity	10℃~80℃RH
16	Control Syetem	Novastar
17	Operating System	Windows98/2000/NT/XP
18	Power Supply	G-ENERGY
19	Maintance Access	Back service
20	Information source	Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, RGB, VGA, and so on.

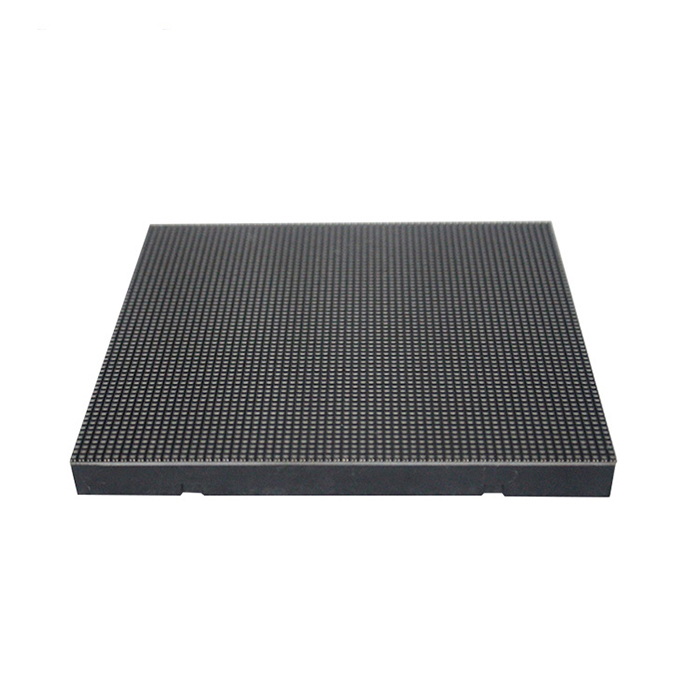

4K high resolution HD P2.5 Indoor smd Full Color LED module image

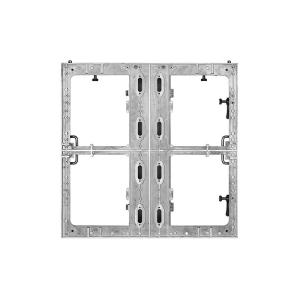

Die Casting Cabinet 640mmX640mm P2.5 LED Screen Module

Standard Accessories: Main power calble , Main signal cable Interconnect power cable , Interconnect signal cable

Receiving card , power supply , short data cable , short power cable .

,
Die Casting Cabinet 640mmX640mm P2.5 LED Screen Module

Regular packing :

Cartons and Wooden case is regular packing , fright case will be extra cost .

Product Tags:

P2.5 indoor full color led display
